Miniature Linear Stages

Miniature Linear Stages

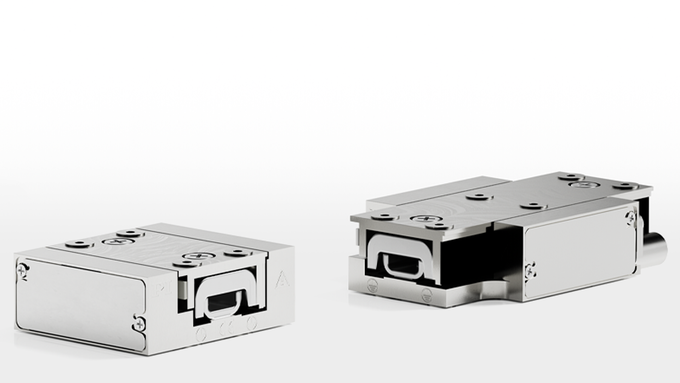

Miniature stages are essential in positioning tasks where available space is limited. Piezomotor solutions like Q-motion®, PIline® and PiezoWalk® allow for the most compact stages due to their direct drive principle.

PI’s stages with electromagnetic motors are present and proven in automation tasks worldwide. Ask for your customization!

Miniature Stages with Q-Motion®, PILine® & PiezoWalk® Drives

U-523 PILine® Linear Stage

Compact Linear Stage with Ultrasonic Piezo Motor

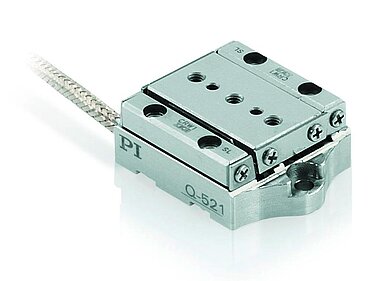

Q-521 Q‑Motion® Miniature Linear Stage

Smallest Linear Stage with Position Control, High Resolution and Affordable Price

U-521 PILine® Linear Stage

Compact Linear Stage with Ultrasonic Piezo Motor

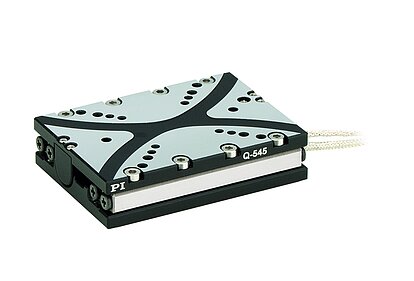

Q-545 Q‑Motion® Precision Linear Stage

High Forces and Small Design Due to Piezo Motors

Miniature Stages with PIMag® VC VoiceCoil and 3-Phase Linear Motors, Stepper, DC & Brushless DC Motors

NEW

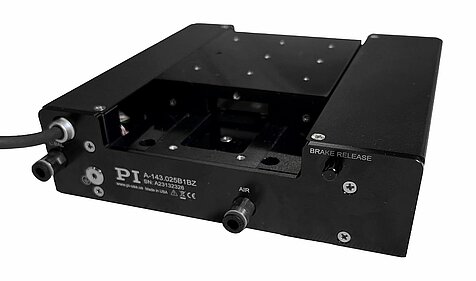

A-143 PIglide Miniature Linear Air Bearing Stage

High Performance • Cleanroom-Compatible • Option for Vertical Mounting

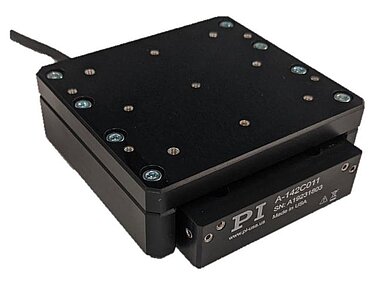

A-142 PIglide Voice Coil Linear Stage with Air Bearings

High Performance • Cleanroom-Compatible • Option for Vertical Mounting
  • High performance
  • Possible vertical mounting
  • Motion platform 75mm × 80mm
  • Travel ranges up to 10mm
  • Acceleration up to 20 m/s

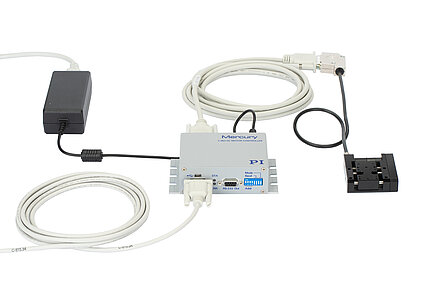

M-110.C86311 Linear Stage System

Compact Linear Stage, DC Gear Motor, 5 mm Travel Range, with Controller

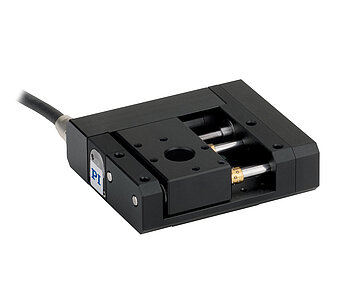

M-110 • M-111 • M-112 Compact Linear Stage

XY(Z) Combinations with a Variety of Drives and Travel Ranges

L-306 Compact Precision Z Stage

Compact Design, Multi-Axis Combinations

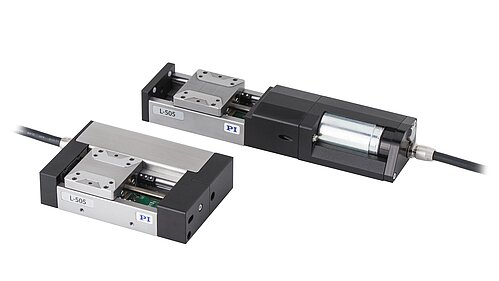

L-505 Compact Linear Stage

With DC or Stepper Motor

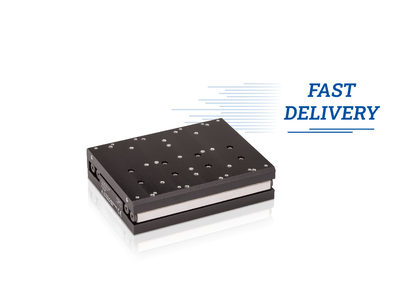

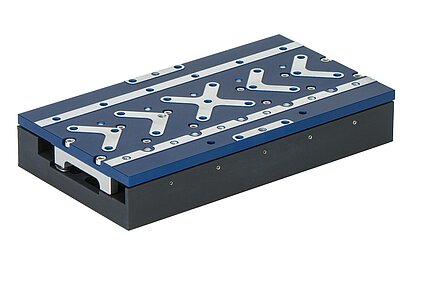

V-408 PIMag® Linear Stage

Inexpensive, with Linear Motor

V-508 High-Precision, Low-Profile Linear Motor Stage

Nanopositioning Performance and High Speed in a Compact, Affordable Stage Design

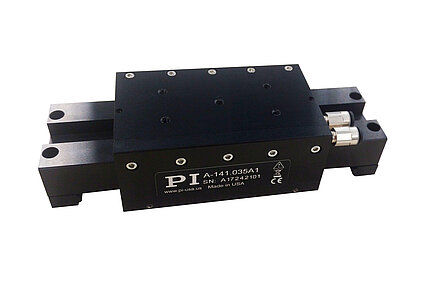

A-141 PIglide MB Miniature Linear Stage with Air Bearings

High Performance, Cleanroom Compatible, Customizable
  • High performance
  • Clean room compatible
  • Motion platform 57mm × 93mm
  • Travel ranges up to 35mm
  • Acceleration up to 3,5m/s

V-522 • V-524 • V-528 PIMag® High Dynamics Linear Stage

Voice Coil Direct Drive with Direct Position Measuring

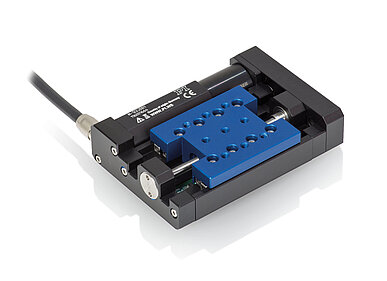

M-122.2DD1 Microtranslation Stage

Compact Linear Stage with Direct Position Measuring

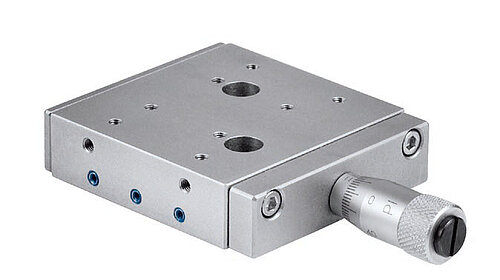

M-105 Microtranslation Stage

Precision Crossed Roller Guides, PiezoMike Option, XY(Z) Combinations

L-406 Compact Linear Stage

For Loads to 10 kg
