XY Piezo Flexure Stages

XY Piezo Flexure Stages

High-precision 2-axis nanopositioning systems integrate PICMA® piezo actuators for maximum reliability. Repeatable, drift-free positioning with optimal stability is possible by the use of high-quality nanometrology sensors.

2-Axis piezo scanners for small loads are frequently used for scanning and tracking processes. Their rapid step-and-settle motions improve the resolution of optical systems. These include imaging processes in camera technology and image recognition, for example for biometrics or document archiving.

Compact XY Piezo Stages

P-611.XZ • P-611.2 XZ and XYZ Nanopositioner

Compact Two-Axis Piezo Nanopositioner

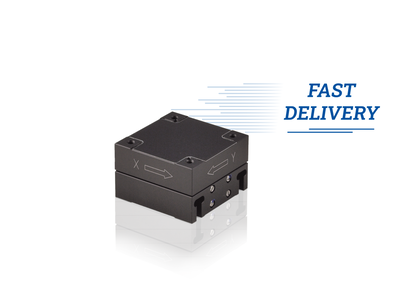

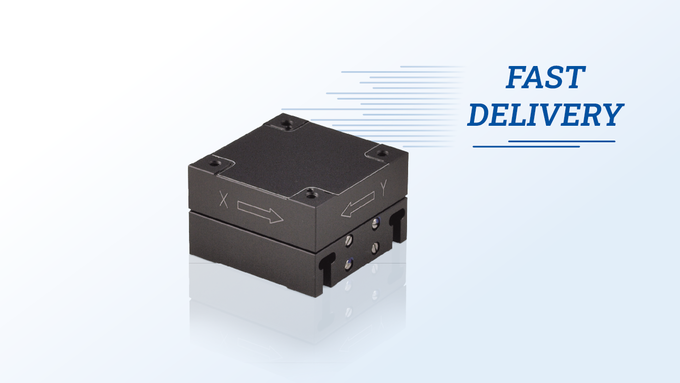

P-620.2 – P-629.2 PIHera XY Piezo Stage

High-precision XY Nanopositioners with Variable Travel Ranges

XY Piezo Flexure Stages with Aperture

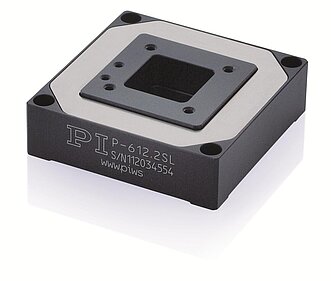

P-612.2 XY Piezo Nanopositioner

Compact, with Aperture

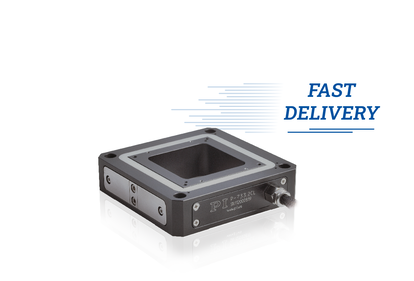

P-733.2 XY Piezo Nanopositioner

High-Precision XY Scanner with Aperture

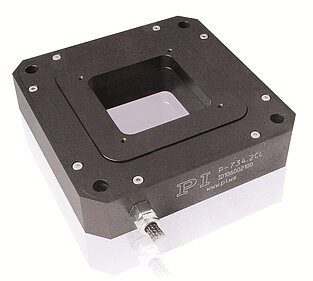

P-734 XY Piezo Scanner

Highly Dynamic, Highest Travel Accuracy, with Aperture

P-545.xR8S PInano® XY(Z) Piezo System

Inexpensive Nanopositioning System for High-Resolution Microscopy

P-545.xC8S PInano® Cap XY(Z) Piezo System

Capacitive Position Measuring for Super-Resolution Microscopy

P-545.3D8S PInano® Trak Piezo Tracking System

Fast XY(Z) Stage for High Dynamics Microscopy
