Piezoceramic Rings

Standard Products

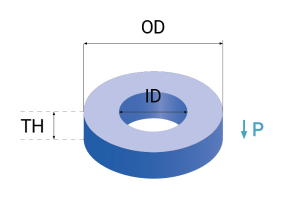

OD   Outer diameter
ID     Inner diameter
TH    Thickness
P      Polarization direction

Outer Diameter OD
2 to 80 mm
Inner Diameter ID
0.8 to 74 mm
Thickness TH
0.15 to 30 mm

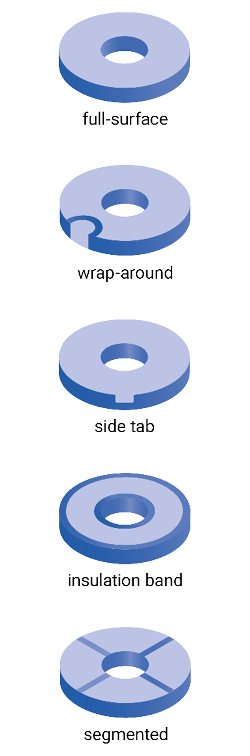

Electrodes
Silver (thick film) or PVD thin film (CuNi, Au, etc.)

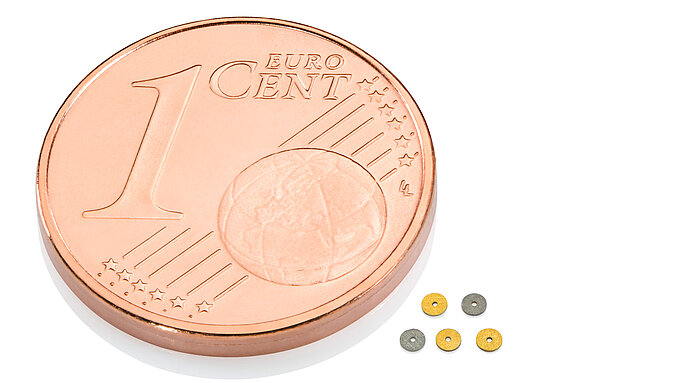

Miniaturized Piezo Ceramics - Rings

Ask for a Quote

Ask for a free quote on quantities required, prices, and lead times.

Downloads

Datasheet

Material Data

Version / Date
2024-08
pdf - 77 KB
Version / Date
2024-08
pdf - 79 KB
Documentation

User Manual A000T0047

Handling and Electrical Contacting of Piezo Components

Version / Date
2019-02-12
pdf - 718 KB
Version / Date
2019-02-12
pdf - 725 KB
