Preconfigured Multi-Axis System for Industrial Applications
Optimizing Design and Development Time
Reducing design and development time is a decisive competitive factor in precision automation. This is why companies striving for optimum performance in areas such as laser material processing or metrology should rely on a powerful, well-configured system. PI supports this approach with the configurable Integrated Multi-Axis System (IMAS). The globally proven, modularly configurable system is based on a standardized, integrated approach for different expansion stages and comes configured and fully tuned including controls. The choice of several performance classes makes the system suitable for numerous applications and budget requirements. All this enables PI to offer a reliably available solution for efficiently setting up and successfully integrating new processes.
Key Benefits of the Solution
- Choice between high-load XY linear stages with various travel ranges from 102 mm to 407 mm
- XY drag chain cable management for smooth integration
- Stage tuning for selectable payloads
- Metrology options: XY orthogonality to 35 to 20 µrad, axis mapping, 2D mapping
- High dynamic motors in various performance classes
- Connector for purge air, side seal, and hard cover to protect against particles
- High-load linear stage with holding brake
- Various travel ranges from 102 mm to 204 mm
- Available as a folded version for a reduced installation space in Z axis
- The Z axis can also be mounted directly on the XY cross table or to a fixed structure, travel range 26 mm
- A supplementary rotary stage will be available in the future
- Robust industrial IP65 connectors for flexible cable exit
- ACS EtherCAT® network motion control
>> G-901 Motion Controller in three versions - Synchronization of motion to laser/event for high accuracy cutting at high speeds
>> PEG / Laser Control Module* - Servo control for improved tracking at higher duty cycles and for disturbance rejection
>> ServoBoost™* - Support of higher-level languages: C, C#, .Net, LabView™, MATLAB®, Visual Basic®, Python

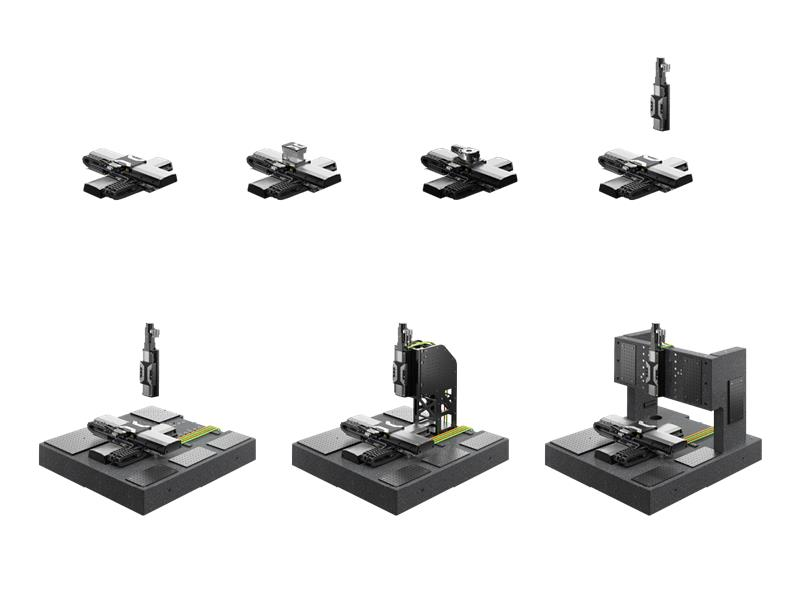

Scalable Standard Integration Levels with Flexible Travel Ranges, Payloads, Mounting Options and Optional Accessories
Accessories
- Granite base plate
- Breadboards for mounting devices
- Alloy or granite brackets for flexible mounting options
- Galvo scanner fixture
- User interface software >> SPiiPlusSPC for complete control of machine motion, lasers, scanners, cameras, and automation components
