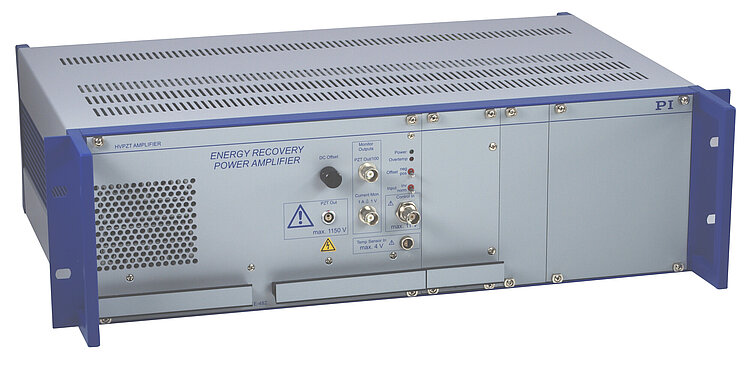

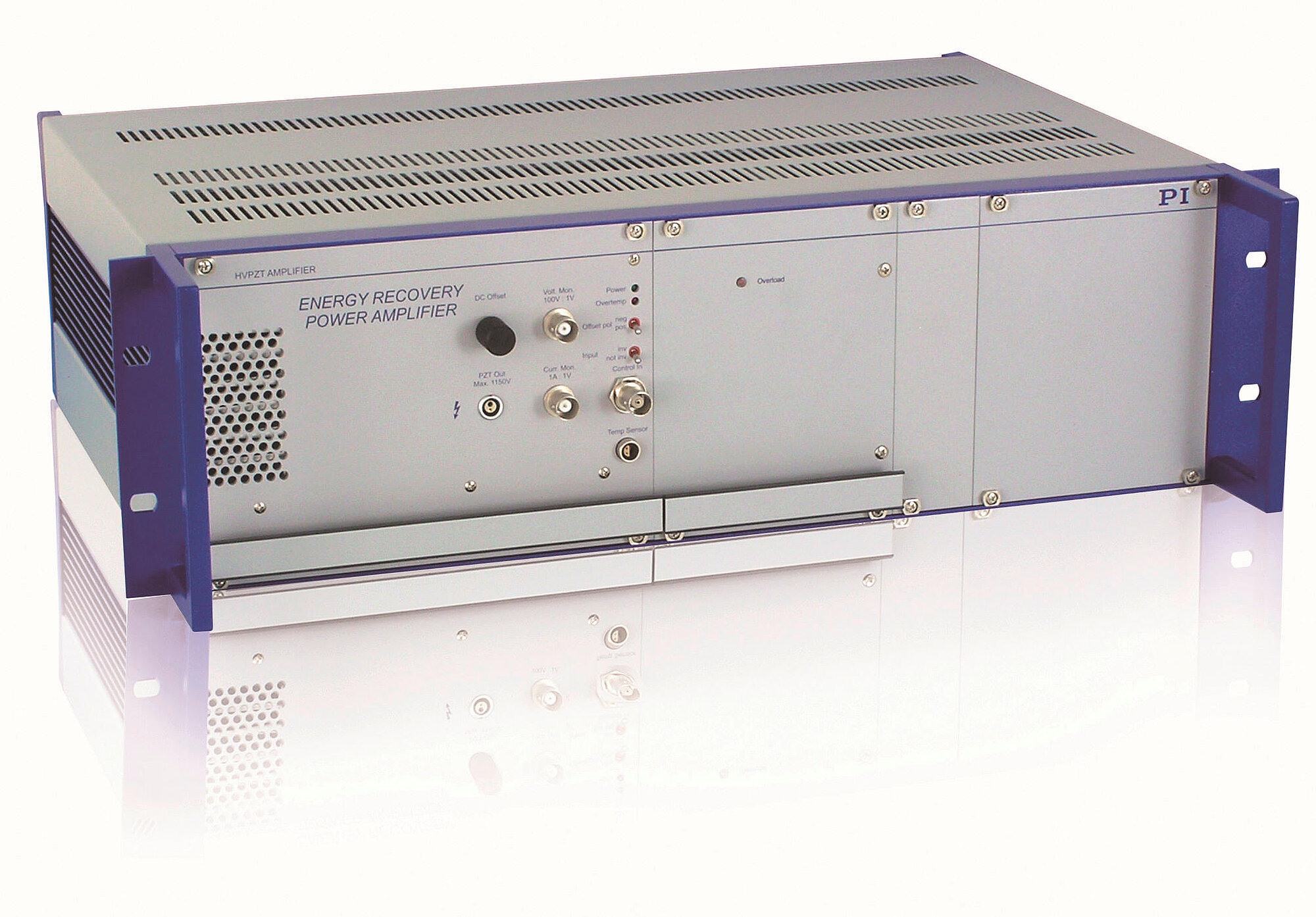

E-482 PICA High-Performance Piezo Amplifier / Servo Controller
High Energy Efficiency due to Energy Recovery
- Peak current 6 A
- Output voltage to 1050 V
- Integrated energy recovery
- Temperature sensor protects piezo actuator from overheating
- Position control (optional)
- Interface / display modules (optional)
PICA high-performance piezo amplifier
19-inch benchtop device for dynamic continuous operation of PICA piezo actuators with high electrical capacitance. Analog control. Output voltage to 1050 V, bipolar can be set. 6 A peak current, 2 A continuous current.
Energy saving of up to 80 % due to switched amplifier principle
Switching amplifier with pulse width modulation (PWM) of the piezo output voltage. When the piezo actuator is discharged, a circuitry for energy recovery stores part of the returning energy in a capacitor and makes it reusable for the next charging cycle. The amplifier runs cooler and provides better stability.
Application fields
Industry and research. Active vibration absorber. Adaptive mechanics. Precision mechanics/machining. Optics. Metrology / measuring technology. Interferometry. Adaptive systems technology. Switching applications. Laser tuning. Force generation / material testing. Nanotechnology.
Specifications
Specifications
Amplifier | E-482.00 |
---|---|
Output voltage | Default: 0 to 1050 V Can be set: -260 to +780 V,-525 to +525 V |
Amplifier channels | 1 |
Average output current (reactive current) | 2 A |
Peak current, <5 ms | 6 A |
Current limitation | Short-circuit proof |
Voltage gain | 100 |

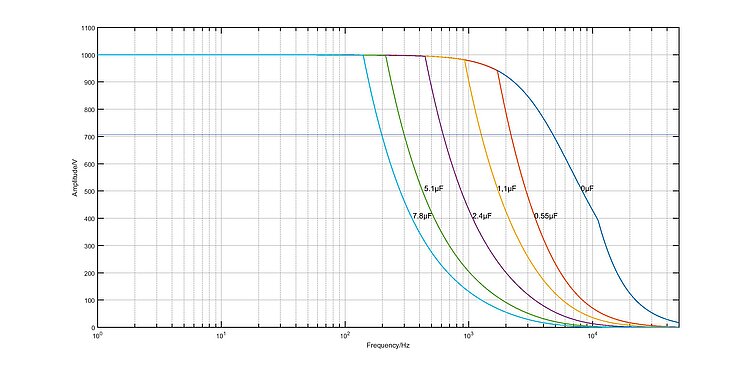

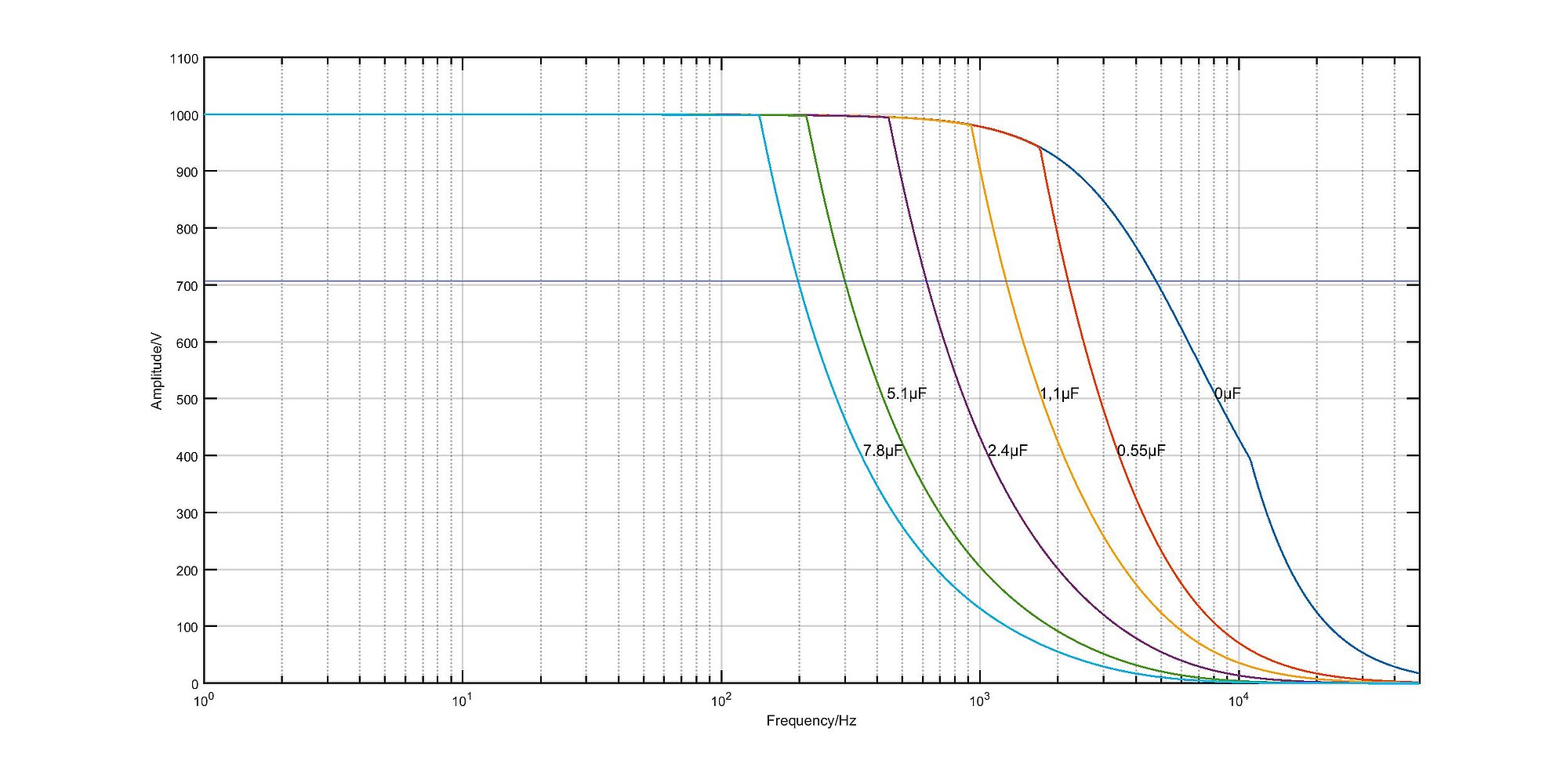

Amplifier bandwidth, small signal | 2 kHz (1 µF) |
Amplifier bandwidth, large signal | 400 Hz (5 µF) |
Residual ripple, noise, 0 to 10 kHz, 1 µF | 300 mVrms |
Suggested capacitive load | 1 µF (min.), 17 µF (max.) |
Input impedance | 100 kΩ |
Input voltage range | Without servo: ±1/100 of selected output voltage range With servo: 0 to 10 V |
