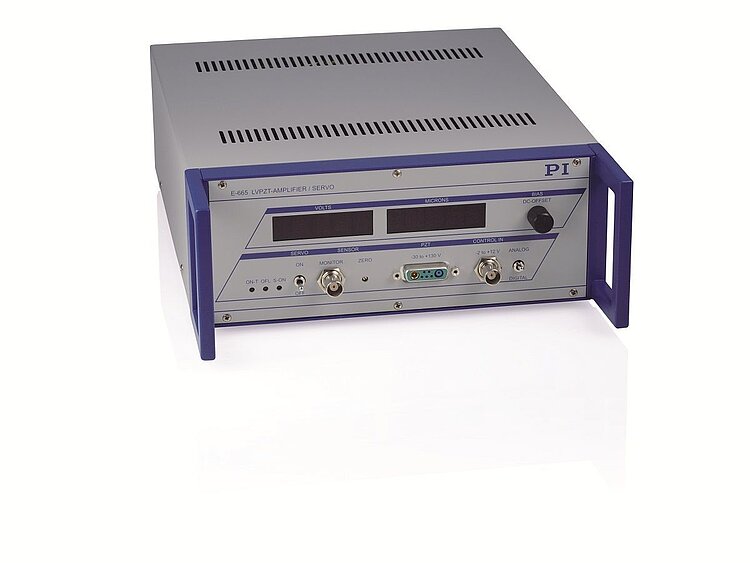

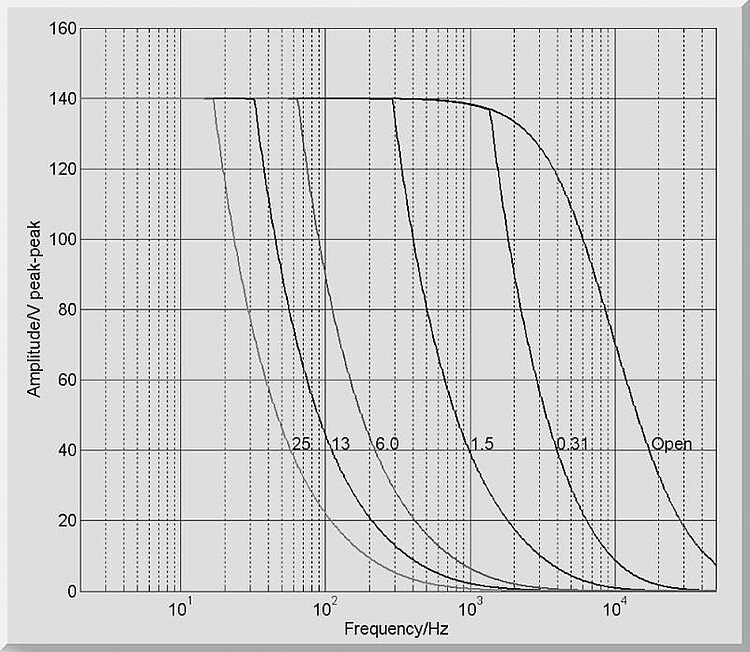

E-665 Piezo Amplifier / Servo Controller

Function

Piezo amplifier and position servo controller

Axes

1

Controller type

P-I (analog) + notch filter

Sensor type

SGS (.S) / capacitive (.C)

Input voltage range

-2 to +12 V

Output voltage range

-30 to +130 V

Peak current, < 20 ms

360 mA

Average output current

150 mA

Current limitation

Short-circuit proof

Noise, 0 to 100 kHz

0.5 (.S) / 4.0 (.C) mV_rms

Voltage gain

10 ±0.1

Input impedance

100 kΩ

Communication interfaces*

USB, RS-232 (Sub-D 9 (m)), 24-bit A/D and 20-bit D/A

Piezo connection

LEMO ERA.00.250.CTL (.S) / Sub-D special (.C)

Sensor connection

LEMO EPL.0S.304.HLN (.S) / Sub-D special (.C)

Analog input

BNC

Sensor monitor socket

BNC

Controller network*

up to 12 channels, parallel

Supported functions*

Wave table; 256 data points, up to 16 macros

Display and indicators

2 × 4½ digits, LED

DC offset setting

10-turn potentiometer, adds 0 to 10 V to the input voltage

Operating temperature range

5 to 40 °C

Overheat protection

Deactivation at 80 °C

Dimensions

236 mm × 88 mm × 273 mm + handles

Mass

2.5 kg

Operating voltage

115 VAC / 230 VAC, 50-60 Hz (linear power adapter)

Max. power consumption

60 W
