High-resolution linear actuator with DC motor; DC motor; 20 mm travel range; 50 N feed force; 30 mm/s maximum velocity; ball screw; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length

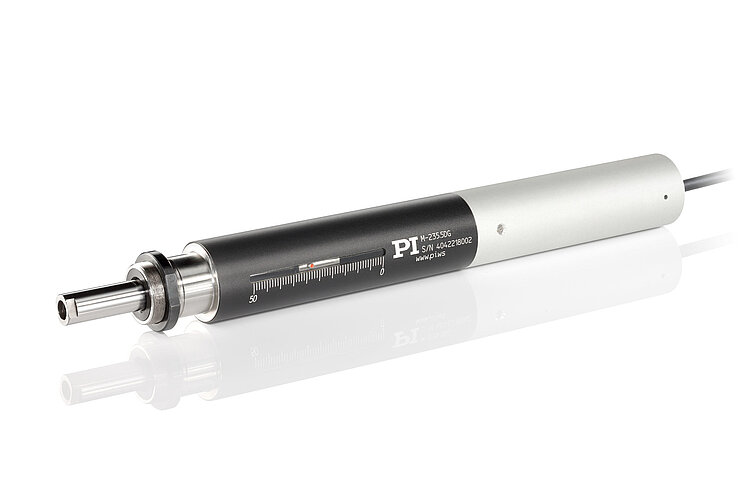

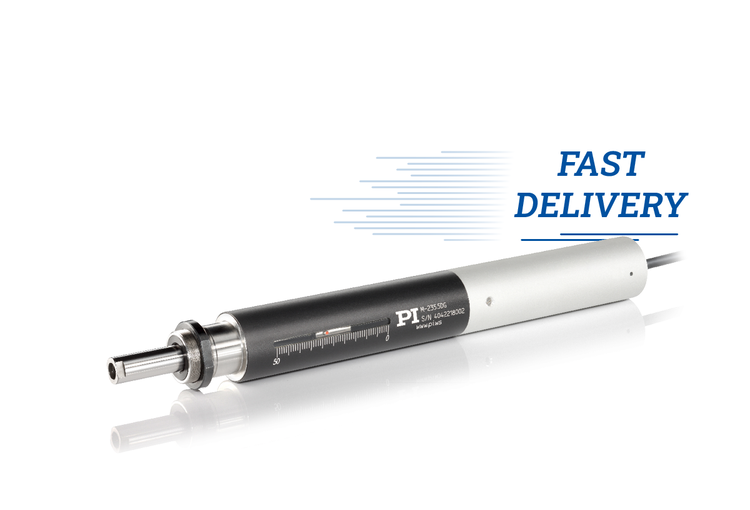

M-235 High-Resolution Linear Actuator with DC Motor
Highly dynamic, high forces up to 120 N
- Travel ranges 20 and 50 mm
- Minimum incremental motion to 0.1 µm
- DC motor allows high velocities
- Push / pull force capacity up to 120 N
- MTBF >10,000 h
Reference-class linear drive
Combines high precision, high forces, and high dynamics.
High-quality components

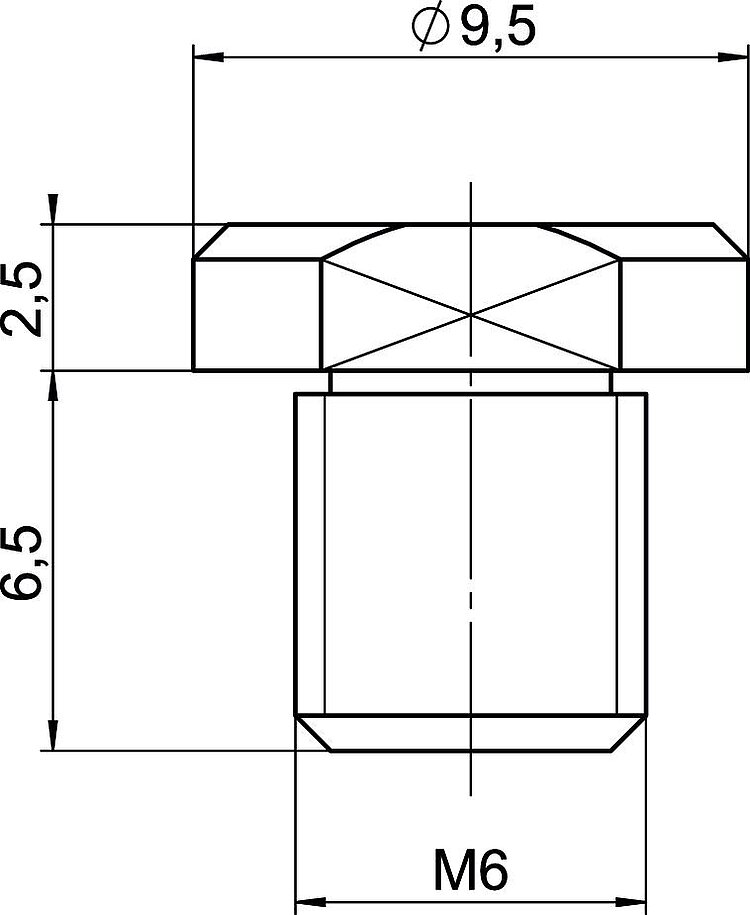

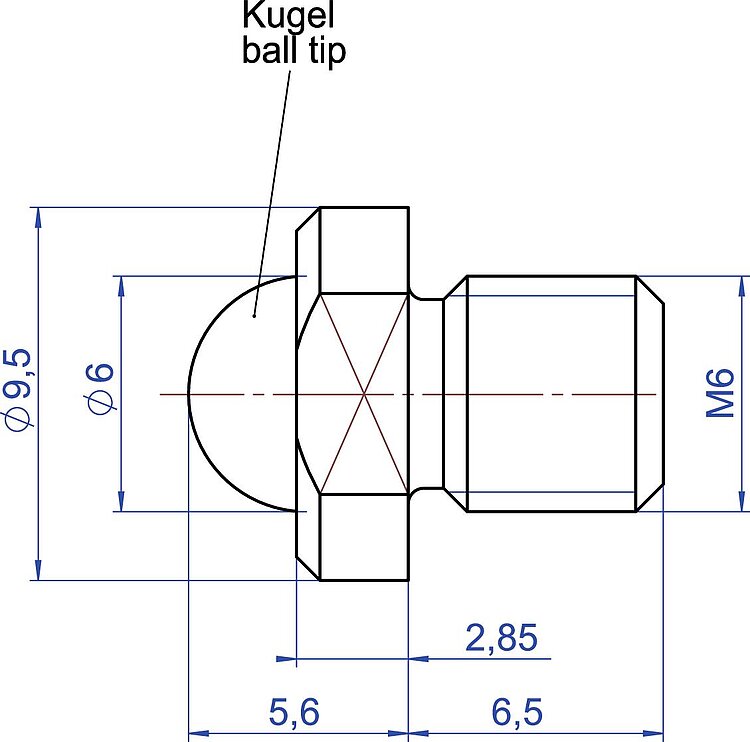

Ball screw for high velocities and a high number of cycles. Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat and spherical tip for decoupling forces. Noncontact limit switches protect the mechanics. A direction-sensing reference switch supports automation applications. Position-controlled variants with differential encoder driver in the connector for safe signal transfer over distances up to 10 m.
Motor variants
- Highly dynamic, closed-loop DC motors reach high velocities
- Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion of just 100 nm
Application fields
Precision adjustment. External drive element for guided systems.

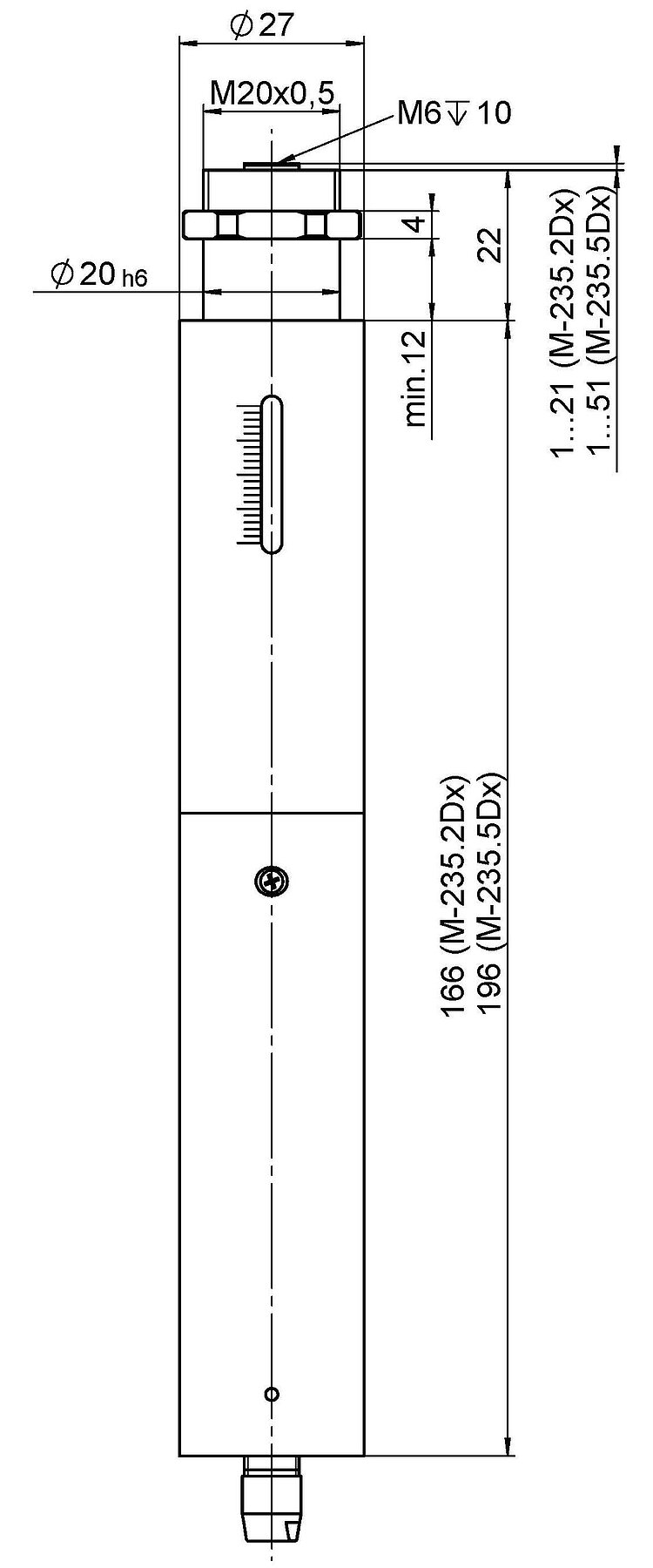

Specifications
Specifications
Motion | M-235.2DD | M-235.5DD | M-235.2DG | M-235.5DG | Tolerance |
---|---|---|---|---|---|
Active axes | X | X | X | X | |
Travel range in X | 20 mm | 50 mm | 20 mm | 50 mm | |
Maximum velocity in X, unloaded | 30 mm/s | 30 mm/s | 2 mm/s | 2 mm/s | |
Positioning | M-235.2DD | M-235.5DD | M-235.2DG | M-235.5DG | Tolerance |
Minimum incremental motion in X | 1.5 µm | 1.5 µm | 0.1 µm | 0.1 µm | typ. |
Unidirectional repeatability in X | ± 0.5 µm | ± 0.5 µm | ± 0.1 µm | ± 0.1 µm | typ. |
Backlash in X | 2 µm | 2 µm | 2 µm | 2 µm | typ. |
Reference switch | Hall effect | Hall effect | Hall effect | Hall effect | |
Limit switches | Hall effect | Hall effect | Hall effect | Hall effect | |
Integrated sensor | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | |
Sensor resolution | 2048 Cts./rev. | 2048 Cts./rev. | 2048 Cts./rev. | 2048 Cts./rev. | |
Drive Properties | M-235.2DD | M-235.5DD | M-235.2DG | M-235.5DG | Tolerance |
Drive type | DC motor | DC motor | DC gear motor | DC gear motor | |
Operating voltage | 0 to ±12 V | 0 to ±12 V | 0 to ±12 V | 0 to ±12 V | |
Drive force in X | 50 N | 50 N | 120 N | 120 N | typ. |
Mechanical Properties | M-235.2DD | M-235.5DD | M-235.2DG | M-235.5DG | Tolerance |
Permissible push force in Y | 8 N | 8 N | 8 N | 8 N | max. |
Drive screw type | Ball screw | Ball screw | Ball screw | Ball screw | |
Drive screw pitch | 1 mm | 1 mm | 1 mm | 1 mm | |
Overall mass | 500 g | 650 g | 550 g | 700 g | |
Material | Aluminum, anodized, chrome steel | Aluminum anodized, chrome steel | Aluminum anodized, chrome steel | Aluminum, anodized, chrome steel | |
Gear ratio i | 29,6 : 1 | 29,6 : 1 | |||
Miscellaneous | M-235.2DD | M-235.5DD | M-235.2DG | M-235.5DG | Tolerance |
Operating temperature range | -20 to 65 °C | -20 to 65 °C | -20 to 65 °C | -20 to 65 °C | |
Connector | D-sub 15-pin (m) | D-sub 15-pin (m) | D-sub 15-pin (m) | D-sub 15-pin (m) | |
Cable length | 0.5 m | 0.5 m | 0.5 m | 0.5 m | |
Recommended controllers / drivers | C-863.12 C-885 with C-863.20C885 C-884 | C-863.12 C-885 with C-863.20C885 C-884 | C-863.12 C-885 with C-863.20C885 C-884 | C-863.12 C-885 with C-863.20C885 C-884 |
Downloads
Datasheet
Documentation
User Manual MP106
M-235 Linear Actuators
3D Models
M-235 3-D model
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
High-resolution linear actuator with DC motor; DC motor; 50 mm travel range; 50 N feed force; 30 mm/s maximum velocity; ball screw; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length
High-resolution linear actuator with DC motor; DC gear motor; 20 mm travel range; 120 N feed force; 2 mm/s maximum velocity; ball screw; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length
High-resolution linear actuator with DC motor; DC gear motor; 50 mm travel range; 120 N feed force; 2 mm/s maximum velocity; ball screw; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length
