B-421.AP1 Adapter Plate for B-421
NEW

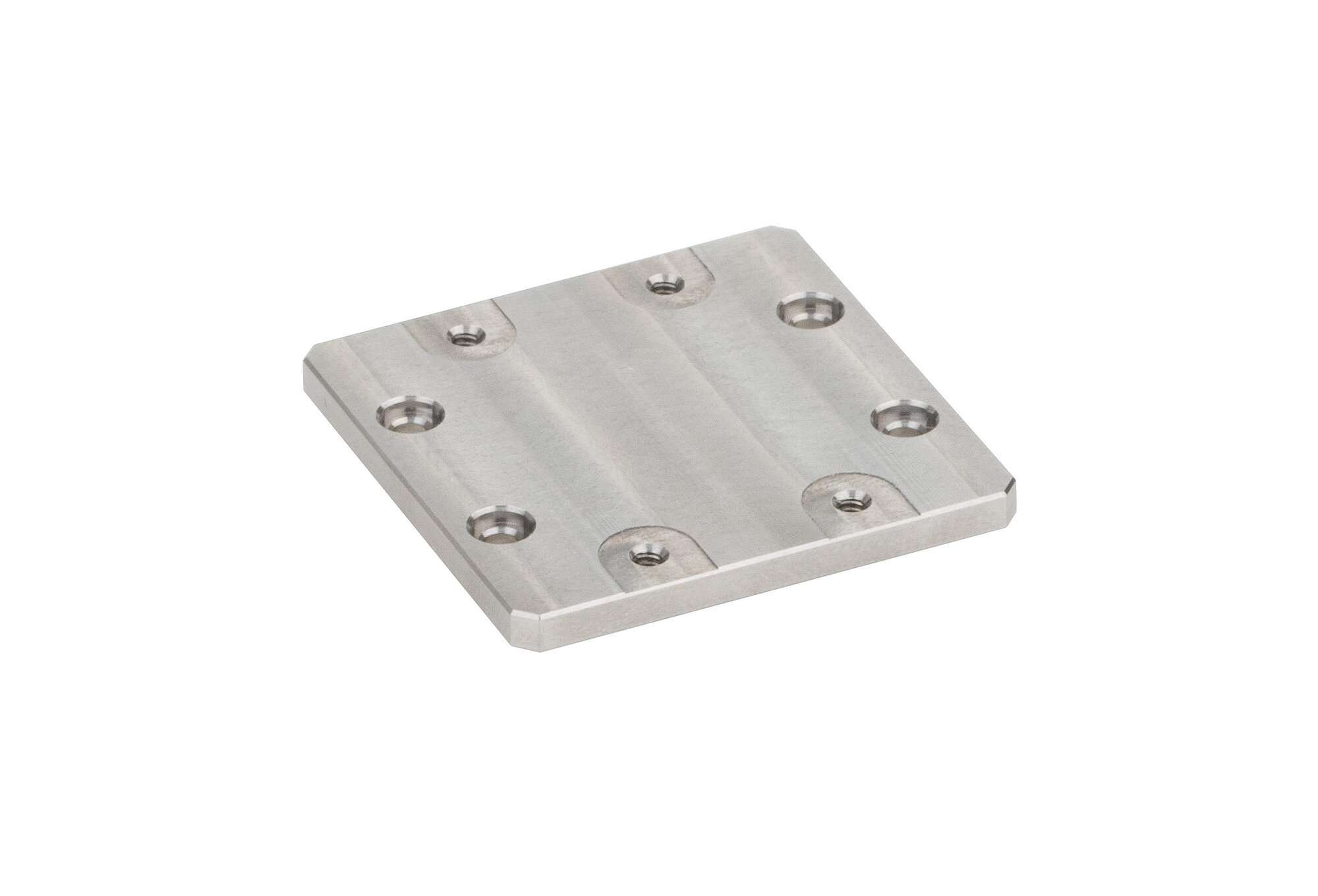

B-421.AP1 Adapter Plate for B-421

For XY Mounting of B-421 Linear Stages

  • Adapter plate for XY mounting
  • Including mounting kit
to content quote / order

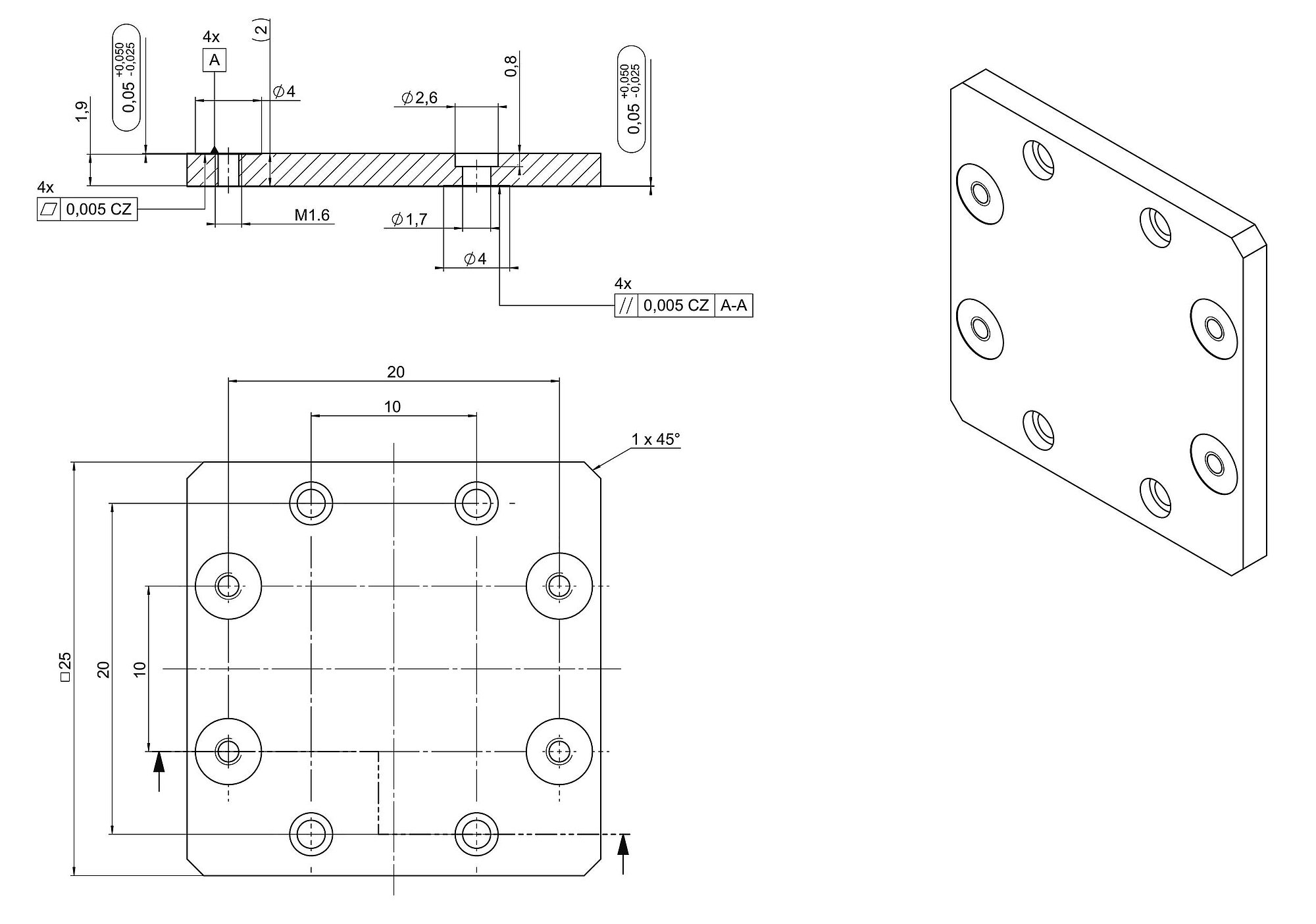

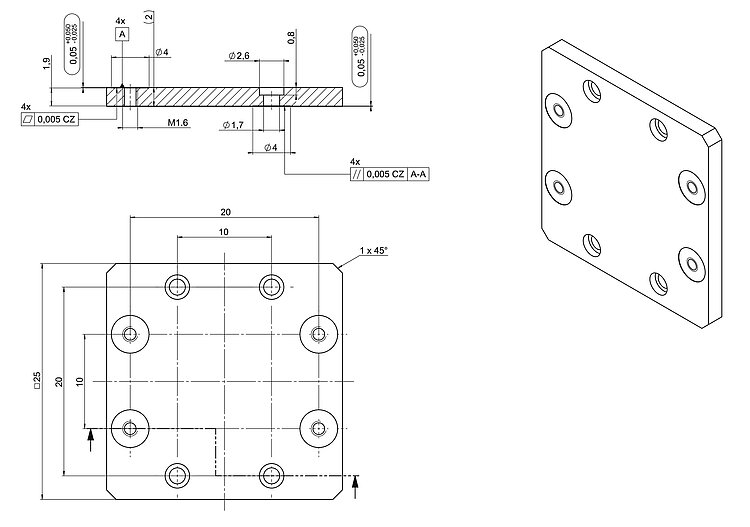

B-421.AP1, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

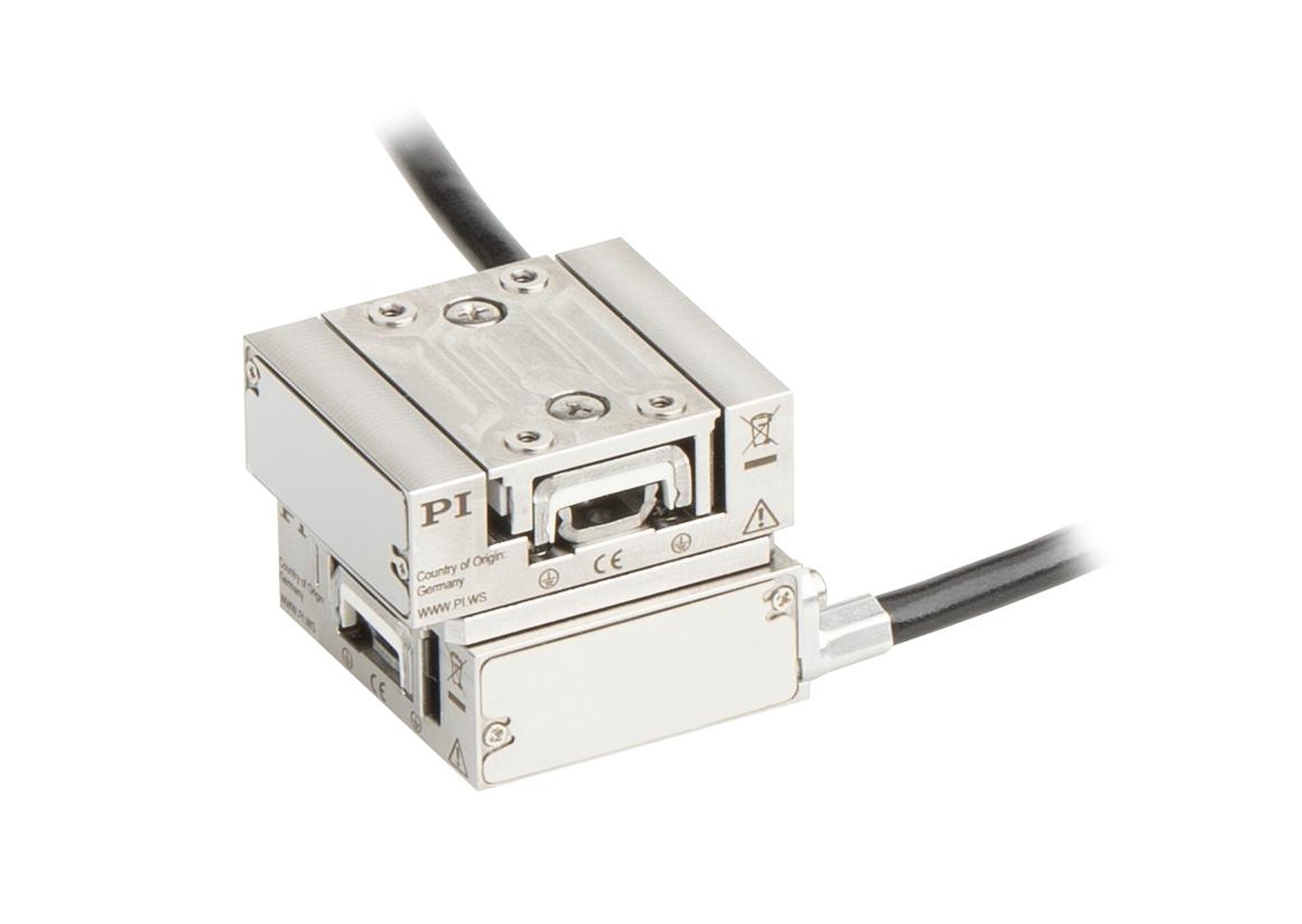

XY assembly consisting of two B-421.131 with B-421.AP1 adapter plate
