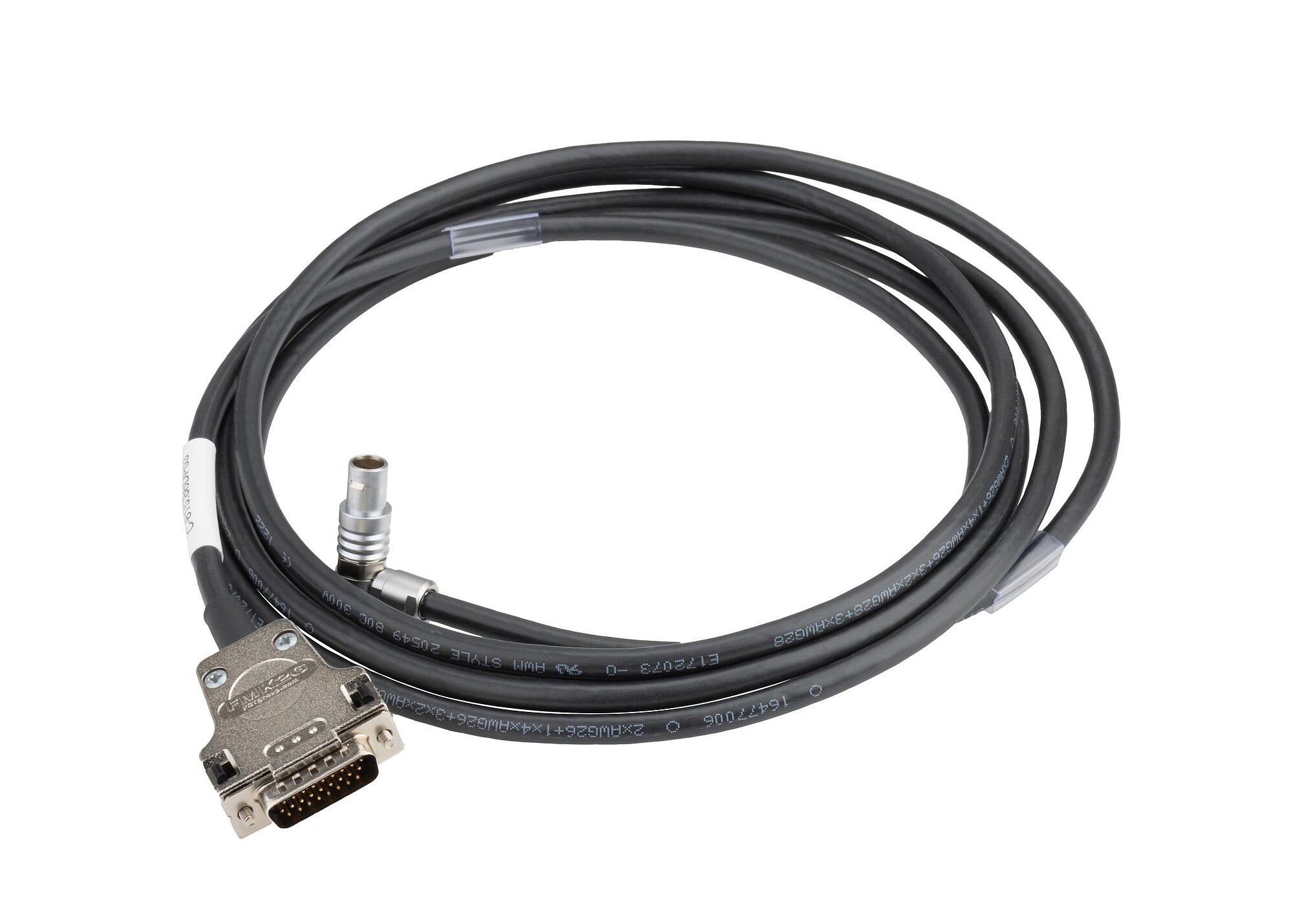

C-815.86DPxxx Hexapod Cables

C-815.86DPxxx Hexapod Cables

NEW

Combined Power Supply and Data Transmission Cables

Easy handling thanks to pluggable cables
Industrial application thanks to drag chain-compatible design
Cable lengths from 3 m to 10 m available
Easy cable management through transmission of data signals and operating voltage via one cable

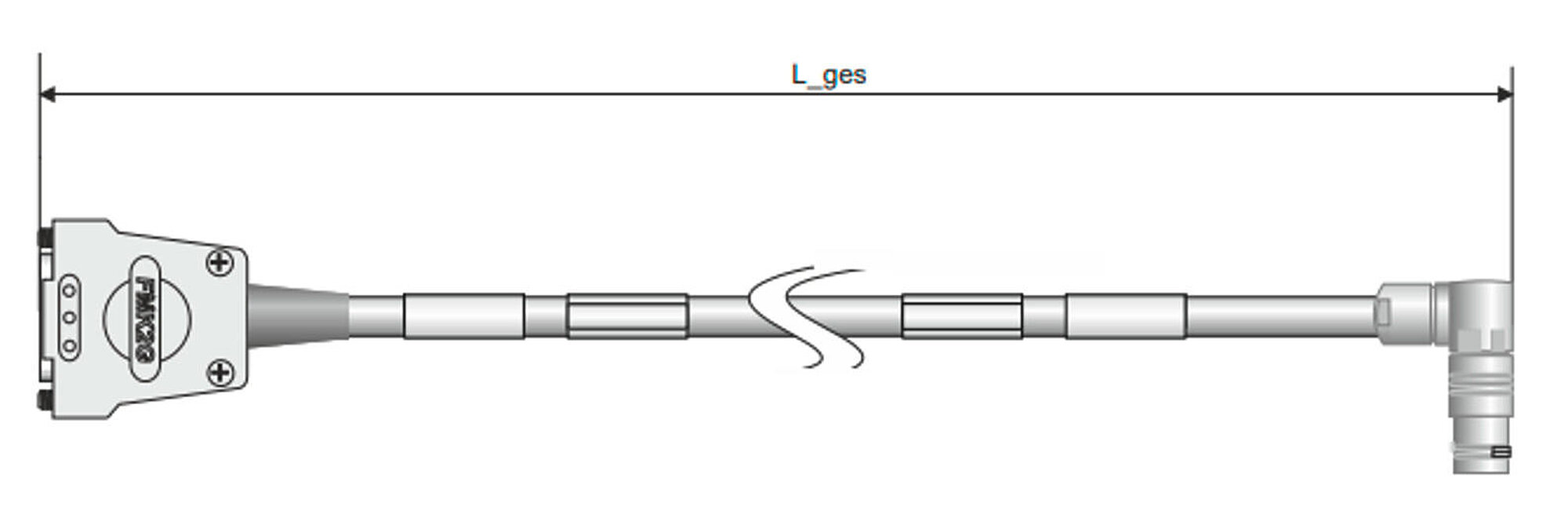

Length of the C-815.86DPxxx cables

Combined Power Supply and Data Transmission Cables

The C-815.86DPxxx cables transmit both data signals and the required operating voltage.

They are used as connecting cables for hexapods without integrated power drivers.

For connection to a controller with integrated power drivers, 6 cables are required per hexapod.

The cables ensure seamless communication and efficient voltage transmission, thereby optimizing the performance of hexapods in industrial applications. The cable design guarantees durability and reliable operation in demanding environments.

specifications quote / order

This content is only available on tablets or desktop devices.

	C-815.86DP03A	C-815.86DP05A	C-815.86DP07A	C-815.86DP10A
Controller side connector	HD D-sub 26 (m)	HD D-sub 26 (m)	HD D-sub 26 (m)	HD D-sub 26 (m)
Mechanics side connector	Circular push-pull connector 16-pole (m) 90°	Circular push-pull connector 16-pole (m) 90°	Circular push-pull connector 16-pole (m) 90°	Circular push-pull connector 16-pole (m) 90°
Cable length	3 m	5 m	7.5 m	10 m
Operating temperature range	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C
Cable outer diameter	6.8 mm	6.8 mm	6.8 mm	6.8 mm
Bending radius for fixed installation	50 mm	50 mm	50 mm	50 mm
Bending radius in drag chain	99 mm	99 mm	99 mm	99 mm
Maximum number of bending cycles	1500000	1500000	1500000	1500000
Drag chain compatibility	suitable for drag chains	suitable for drag chains	suitable for drag chains	suitable for drag chains

downloads quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

C-815.86DP03A NEW!

Connecting cable for hexapods without integrated power driver; D-sub HD 26 (m) to circular push-pull connector 16-pin (m) 90°; suitable for drag-chains; 3 m

Add to quote list Remove from quote list

C-815.86DP05A NEW!

Connecting cable for hexapods without integrated power driver; D-sub HD 26 (m) to circular push-pull connector 16-pin (m) 90°; suitable for drag-chains; 5 m

Add to quote list Remove from quote list

C-815.86DP07A NEW!

Connection cable for hexapods without integrated power drivers; D-sub HD 26 (m) to circular push-pull connector 16-pole (m) 90°; suitable for drag chains; 7.5 m

Add to quote list Remove from quote list

C-815.86DP10A NEW!

Connecting cable for hexapods without integrated power driver; D-sub HD 26 (m) to circular push-pull connector 16-pin (m) 90°; suitable for drag-chains; 10 m

Add to quote list Remove from quote list
