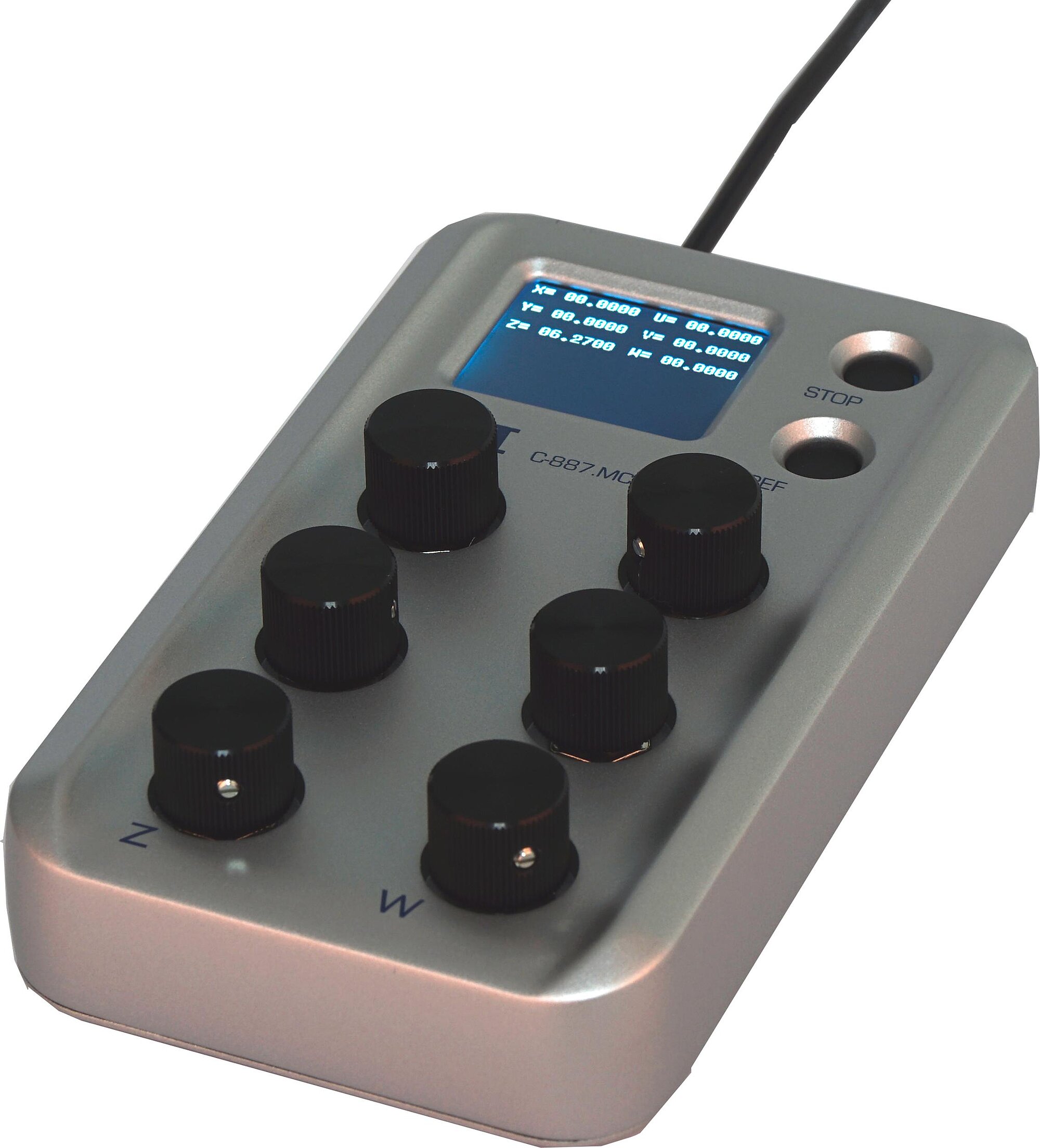

C-887.MC2 Manual Control Unit for Hexapods

Easy Manual Operation, Position Display

6 rotary knobs for independent positioning of all Cartesian axes; velocity and step size can be set
Additional pushbuttons for motion stop and referencing
Display of the position of all Cartesian axes
Display of velocity, errors, or pivot point possible
USB port for direct connection to the controller
Functionality integrated in the firmware of the C-887 controller

quote / order

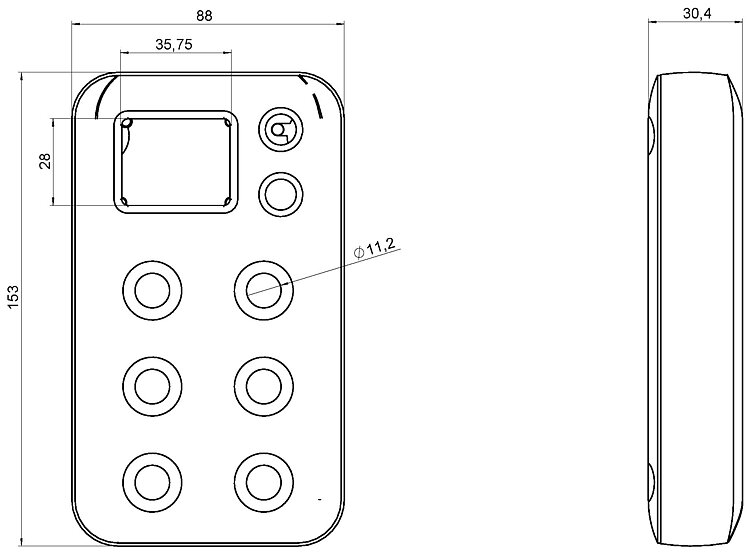

C-887.MC2, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

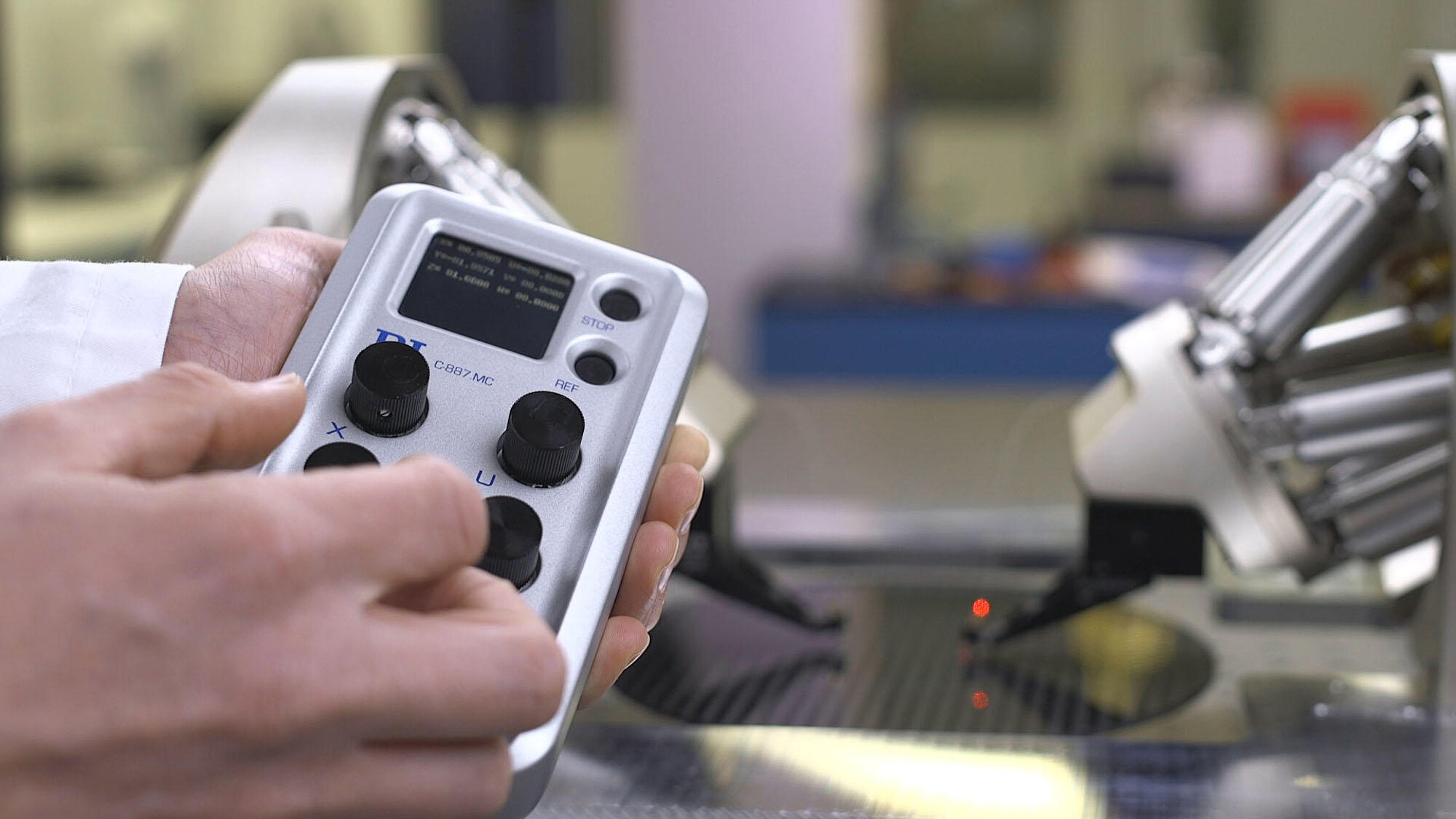

C-887.MC2 in practical use.

Product overview

Using the C-887.MC2 manual control unit, axis motion can be started and stopped. For this purpose, C-887.MC2 is connected either to a C-887.5xx[0] hexapod controller or to a PC.

Display: 160 × 128 pixels
Rotary knobs: 32 steps per revolution, configurable step size

Download datasheet specifications quote / order

Datasheet

Version / Date

2025-07-18

pdf - 429 KB

Version / Date

2025-07-18

pdf - 430 KB

Version / Date

2019-07-31

pdf - 732 KB

Download

	C-887.MC2
Cable length	3 m
Overall mass	350 g
Operating temperature range	5 to 40 °C

Download datasheet downloads quote / order

Datasheet

Version / Date

2025-07-18

pdf - 429 KB

Version / Date

2025-07-18

pdf - 430 KB

Version / Date

2019-07-31

pdf - 732 KB

Download

Documentation

C-887.MC2 Manual Control Unit

Version / Date

2024-08-16

pdf - 1,018 KB

English

quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

C-887.MC2

Manual control unit for hexapods, USB connector with 3 m connection cable, rotary knobs for all Cartesian axes, buttons for motion stop and referencing, position display
